BMW C400GT - Rider's Manual > Indicator and warning lights
- Turn indicator, left
- Fuel reserve
- High beam
- General warning light
- Turn indicator, right
- Alarm system LED
- with auxiliary headlamp OA
Additional headlight - ASC
- ABS
Multifunction display
- Time
- Fuel fill level indicator
- Warning symbols
- Text field for warnings
- Set heating stage
- Set heating stage
- Trip odometer
Service display - Displays of the onboard computer
- Outside temperature warning
- BMW flexcase
Warning lights
Displays
Warnings are displayed with appropriate warning lights.
Warnings for which no separate warning light is available are indicated by the 'universal' warning light 1 in conjunction with a warning notice at position 2 such as LAMPF! or a warning symbol 3 in the multifunction display.
The universal warning light lights up in either yellow or red depending on the urgency of the warning.
If several warnings are active, all corresponding warning lights and warning symbols are displayed; warnings are alternated in the display.
You will find an overview of the potential warnings on the following pages.

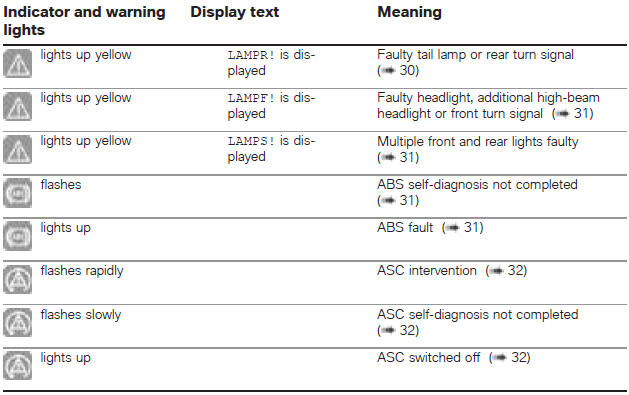

Overview of warning indicators
See also:
BMW C400GT - Rider's Manual > Outside temperature warning
Ice crystal symbol is displayed. Possible cause: The ambient temperature measured at the vehicle is lower than 37 ºF (3 ºC). WARNING Risk of black ice, even above 37 ºF (3 ºC)
