Honda NSS300 Forza - Owner's Manual > Storage Equipment

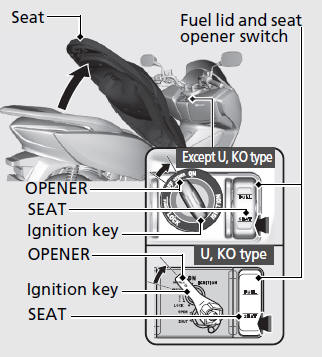

Seat Open
- Insert the ignition key and turn it to the position of OPENER.
- Push the SEAT side of the fuel lid and seat opener switch.
- Open the seat.
Seat Close
Close and push down on the rear of the seat until locks. Make sure that the seat is locked securely to pull it up lightly.
Take care not to lock your key in the compartment under the seat.
Helmet Holder
The helmet holder is located under the seat.
A helmet set wire is in the tool kit.
- Use the helmet holder only when parked.
- Securely insert the helmet holder into the slot when closing the seat.
WARNING
Riding with a helmet attached to the holder can interfere with the rear wheel or suspension and could cause a crash in which you can be seriously hurt or killed.
Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.
Storage Equipment (Continued)
Two helmets can be stored in the luggage box. Set the helmets as shown.
- Make sure to turn the rear side helmet to face the right side while the front side helmet faces the front.
- Some helmets may not fit in the compartment due to their size or design.
Luggage Box
Never exceed the maximum weight limit.
Maximum Weight: 10 kg (22 lb)
- Do not store any items that are flammable or susceptible to heat damage.
- Do not store valuables or fragile articles.
Tool Kit/Document Bag
The tool kit and document bag are in the luggage box.
Left Fairing Pocket
Open
- Insert the ignition key and turn it to the position of OPENER.
- Push BOX side of the box opener switch.
Close
Close the left fairing pocket lid until it locks.
Right Fairing Pocket
Open
Pull the knob up, then open the right fairing pocket lid.
Close
Close the right fairing pocket lid.
The maximum allowable load in the left and right fairing pocket shall be no more than:
Left Fairing Pocket 1.5 kg (3.0 lb)
Right Fairing Pocket 0.5 kg (1.0 lb)
Make sure that the right fairing pocket lid is closed securely.
- Do not store valuables or fragile articles.
Storage Equipment (Continued)
Accessory Socket
The accessory socket is located in the left fairing pocket.
Open the left fairing pocket lid to gain access to the accessory socket.
Rated capacity is 24W (12V, 2A).
- To prevent the battery run down or weak the battery, keep the engine running while drawing current from the socket.
- Set the headlight in the low beam. The battery run down or damage to the accessory socket causes result.
- To prevent entry foreign matter, be sure to close the cover when the accessory socket is not used.
