Peugeot Satelis - Service manual > Changing the engine oil and replacing the oil filter

Service Operations / Changing the engine oil and replacing the oil filter

SERVICE OPERATIONS

SERVICE OPERATIONS

SERVICE OPERATIONS

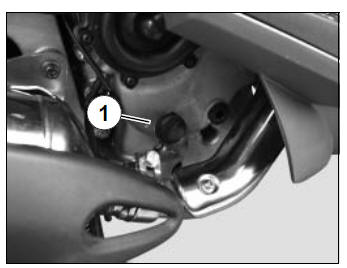

Drain the engine when it is warm.

Wear gloves in order not to get burnt.

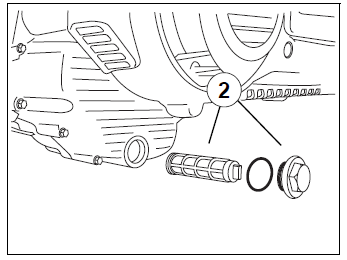

Tightening torque: 1.4 m.daN.

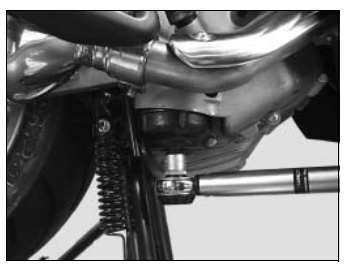

Tightening torque: 2.5 m.daN.

SERVICE OPERATIONS

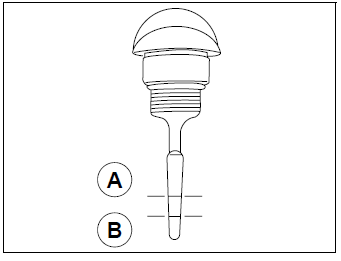

  1. Oil level high.
  2. Oil level low.

Note: Check the level with the machine parked on its centre stand, on level ground.

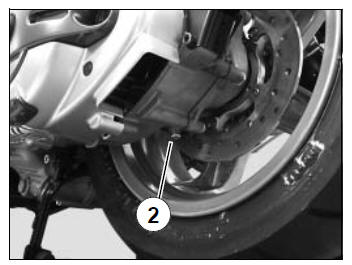

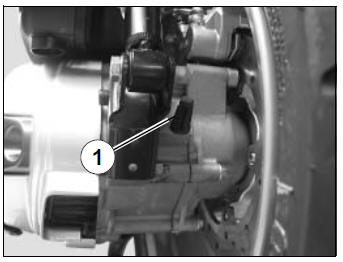

Draining the relay box.

SERVICE OPERATIONS

SERVICE OPERATIONS

SERVICE OPERATIONS

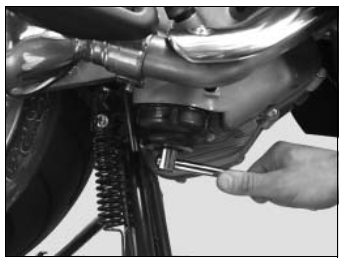

Tightening torque: 1.5 m.daN.

SERVICE OPERATIONS

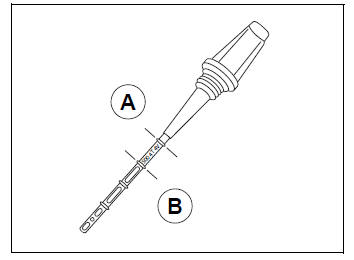

  1. Oil level high.
  2. Oil level low.

Note: Check the level with the machine parked on its centre stand, on level ground.
