Kawasaki J300 - Service manual > Cooling System
Exploded View
HG: Apply high-temperature grease.
Lh: Left-hand Threads.
R: Replacement Parts.
SS: Apply silicone sealant.
Coolant Flow Chart
- Hot Coolant
- Cold Coolant
- Reserve Tank Overflow Hose
- Reserve Tank
- Radiator Overflow Hose
- Water Bypass Hose
- Thermostat
- Radiator Cap
- Radiator
- Water Pump
Specifications
Special Tools and Sealant
Outside Circlip Pliers: 57001-144
Oil Seal Driver
37.5:
57001-1660
Bearing Driver Set: 57001-1129

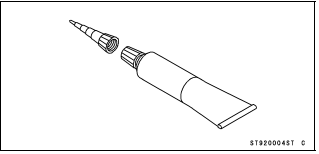

Liquid Gasket, TB1211F: 92104-0004
