Kymco XCITING 500 - Service Manual > Final reduction disassembly
Remove the exhaust muffler.
Remove the rear brake caliper.
Remove the right rear shock absorber.
Remove the rear fork.
Remove the rear wheel.
Drain the transmission gear oil into a clean container.
Remove the eight bolts and transmission cover.
Remove the gasket and dowel pins.
Remove the final gear shaft.
Remove the countershaft.
Remove the final gear.
Remove the driven pulley.
Press the driveshaft out or the left crankcase.
Check the drive shaft for wear or damage.
Remove the driveshaft oil seal and bearing from the transmission case.

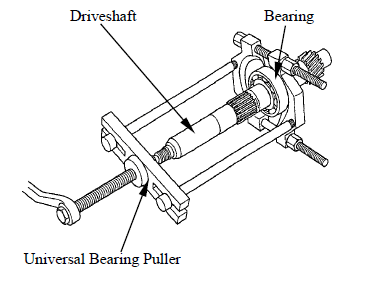

If the bearing is left on the driveshaft, remove it with the special tool.
Special tool: Universal bearing puller E030
See also:
Kymco XCITING 500 - Service Manual > Final Reduction
SCHEMATIC DRAWING SERVICE INFORMATION
Kymco XCITING 500 - Service Manual > Final reduction inspection
Check the driveshaft, countershaft, final gear and final gear shaft for wear or damage. Check the oil seal and bearings in the left crankcase for wear or damage.
