Kymco XCITING 500 - Service Manual > Headlight

REMOVAL

Remove the front cover.

Remove six screws and headlight.

INSTALLATION

Installation is in the reverse order of removal.

FRAME COVERS REMOVAL

TURN SIGNAL LIGHT

REMOVAL

Remove the front cover.

Remove three screws and turn signal light.

INSTALLATION

Installation is in the reverse order of removal.

FRAME COVERS REMOVAL

FRONT METER VISOR

REMOVAL

Remove the windshield.

Remove the front cover.

Remove four bolts and windshield holder.

FRAME COVERS REMOVAL

Remove two screws and front meter visor.

INSTALLATION

Installation is in the reverse order of removal.

FRAME COVERS REMOVAL

MEER PANEL

REMOVAL

Remove the front cover.

Remove the front meter visor.

Remove four screws.

FRAME COVERS REMOVAL

Disconnect the speedometer connector and remove meter panel.

INSTALLATION

Installation is in the reverse order of removal.

FRAME COVERS REMOVAL

METER

REMOVAL

Remove the meter panel.

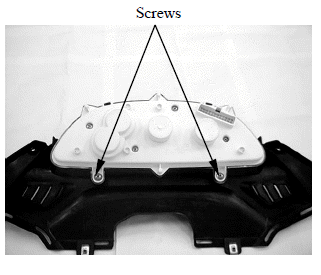

Remove two screws and meter.

FRAME COVERS REMOVAL

INNER COVER

REMOVAL

Remove the front cover.

Remove the floorboard.

Remove the meter panel.

Remove the shutter screw and shutter.

FRAME COVERS REMOVAL

Turn the fuel fill cap garnish counterclockwise and remove it.

Remove three screws and disconnect the fuel fill duct.

FRAME COVERS REMOVAL

Remove four fasteners.

Remove the inner cover.

INSTALLATION

Installation is in the reverse order of removal.

FRAME COVERS REMOVAL

FRONT LOWER COVER

REMOVAL

Remove the front cover.

Remove the right and left floor skirt.

Remove two bolts and front lower cover.

FRAME COVERS REMOVAL
