Kymco XCITING 500 - Service Manual > Frame covers removal
Frame Covers/Exhaust Muffler / Frame covers removal
SEAT
REMOVAL
Unlock the seat with the ignition key.
Open the seat.

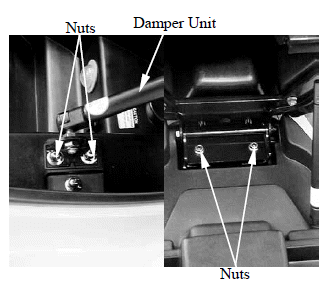

Remove the two nuts and seat damper unit.
Remove the two nuts and the seat.
INSTALLATION
Installation is in the reverse order of the removal.
After installation, check the seat installation by moving the seat.
