Honda NSS300 Forza - Owner's Manual > Indicators

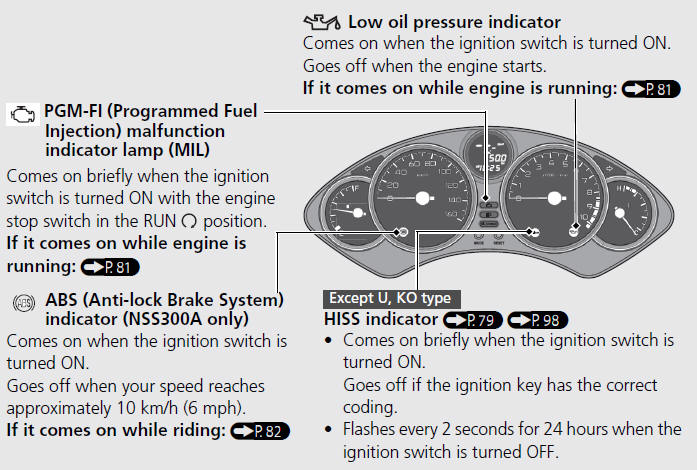

PGM-FI (Programmed Fuel
Injection) malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned ON with the
engine stop switch in the RUN
position.
ABS (Anti-lock Brake
System) indicator (NSS300A only)
Comes on when the ignition switch is turned ON.
Goes off when your speed reaches approximately 10 km/h (6 mph).
Low oil pressure
indicator
Comes on when the ignition switch is turned ON.
Goes off when the engine starts.
Except U, KO type
HISS indicator
- Comes on briefly when the ignition switch is turned ON.
Goes off if the ignition key has the correct coding.
- Flashes every 2 seconds for 24 hours when the ignition switch is turned OFF.

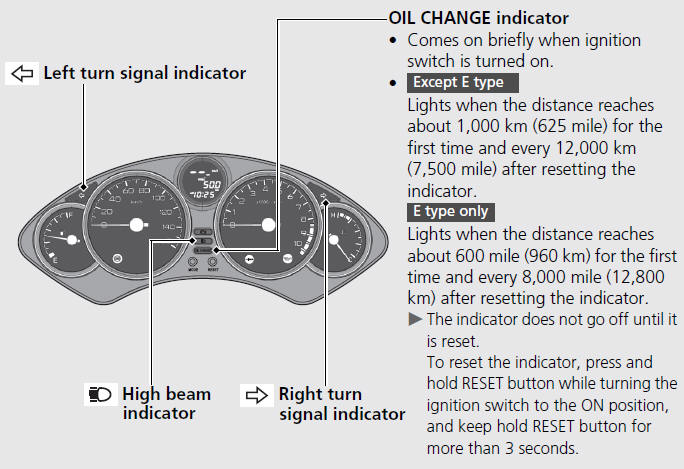

Left turn signal
indicator
High beam indicator
Right turn signal
indicator
OIL CHANGE indicator
- Comes on briefly when ignition switch is turned on.
Except E type
Lights when the distance reaches about 1,000 km (625 mile) for the first time and every 12,000 km (7,500 mile) after resetting the indicator.
E type only
Lights when the distance reaches about 600 mile (960 km) for the first time and every 8,000 mile (12,800 km) after resetting the indicator.
- The indicator does not go off until it is reset.
To reset the indicator, press and hold RESET button while turning the ignition switch to the ON position, and keep hold RESET button for more than 3 seconds.

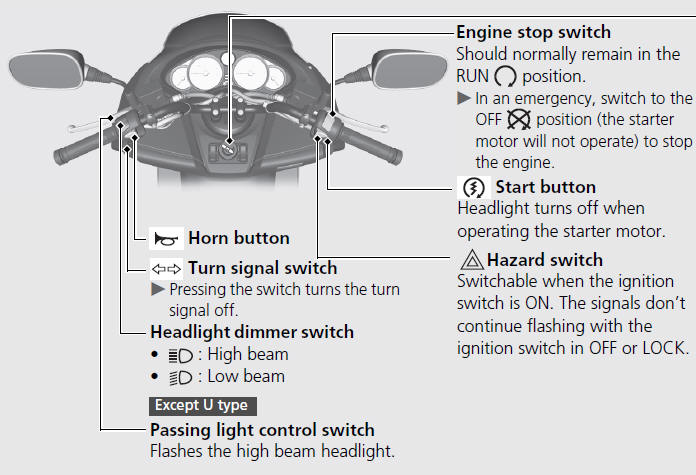

Switches
Horn button
Turn signal switch
-
Pressing the switch turns the turn signal off
Headlight dimmer switch
: High beam
: Low beam
Except U type
Passing light control switch
Flashes the high beam headlight.
Engine stop switch
Should normally remain in the RUN
position.
-
In an emergency, switch to the OFF
position (the starter motor will
not operate) to stop the engine.
Start button
Headlight turns off when Horn button operating the starter motor.
Hazard switch
Switchable when the ignition switch is ON. The signals don't continue flashing with the ignition switch in OFF or LOCK.

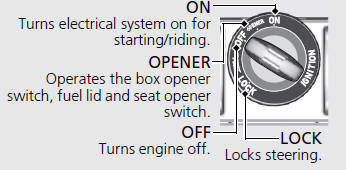

Ignition Switch
Switches the electrical system on/off, locks the steering, and operates the box opener switch, fuel lid and seat opener switch.
- Key can be removed when in the OFF or LOCK position.
Except U, KO type

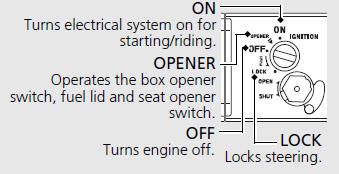

U, KO type
Switches (Continued)
Steering Lock
Lock the steering when parking to help prevent theft.
A U-shaped wheel lock or similar device is also recommended.

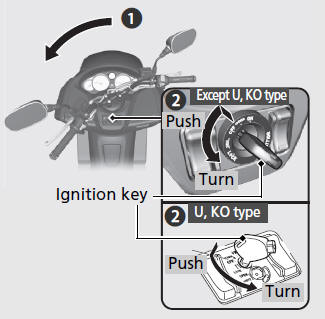

Locking
- Turn the handlebar all the way to the left.
- Push the key down, and turn the ignition switch to the LOCK position.
- Jiggle the handlebar if the lock is difficult to engage.
- Remove the key.
Unlocking
Insert the key, and turn the ignition switch to the OFF position.
U, KO type

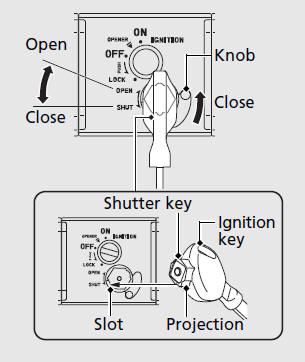

Shutter
The ignition switch for this scooter is equipped with a shutter. After parking the scooter, close the shutter for theft prevention.
Close
- Remove the ignition key from the ignition switch.
- Align the projection of the shutter key with the slot of the shutter,
and turn the shutter key counterclockwise.
- You can also close the shutter by moving the knob upward without the shutter key.
- Remove the key.
Open
Align the projection of the shutter key with the slot of the shutter, and turn the shutter key clockwise.
