Peugeot Satelis - Owner's Manual > Level checks
Engine oil 125 cc.
Oil level inspection via the inspection window.
- Place the vehicle on its central stand on flat ground.
The oil level shall not be between the minimum (A) and maximum (B) level marks without exceeding the latter.
The engine oil level should
always be checked before you leave.
Too much oil will noticeably restrict the vehicle's performance.
To top up with oil, the driver's saddle must be removed to give access to the filler cap. (1)
Engine oil-Relay box oil
250 cc-300 cc-400 cc-500 cc.
Oil level inspection with the cap/gauge.
- Place the vehicle on its central stand on flat ground.
- Remove the filler cap and wipe up the oil.
- Fit and screw the cap home.
- Remove the filler cap/gauge and check the oil level.
- The oil level shall not be between the minimum (A) and maximum (B) level marks without exceeding the latter.
Engine
Relay box 250/300/400/500
Coolant

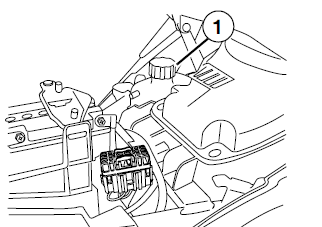

The filler cap/gauge is located in the rear shield panel after removing the hatch. (1)
The coolant level must be cold checked regularly and topped up only with coolant recommended by the manufacturer.
Brake fluid
The brake fluid levels must be checked regularly through the braking unit inspection window (1).
If the level is close to the minimum mark, we advise you to go to a registered dealer to have the braking system checked and topped up if necessary.
